In the back corner of our yard we have a lot of standing water. I would like to drain that so the kids can utilize this space. How do I go about draining out this space?
Our Answer
In a perfectly graded world, the land around your home would slope away from the exterior walls preventing flooded basements and crawl spaces. Then it would continue to slope to the boundaries of your property lines and miraculously disappear without ever flooding out your neighbors!
Alas, perfect grading is hard to find and thus we need a few creative solutions to help move things along. To move standing water out of a low lying area in your yard, a “curtain drain” works well. A curtain drain is a shallow trench dug to collect water from low lying areas and run it away via a perforated drain pipe surrounded by stone and covered by filter cloth.

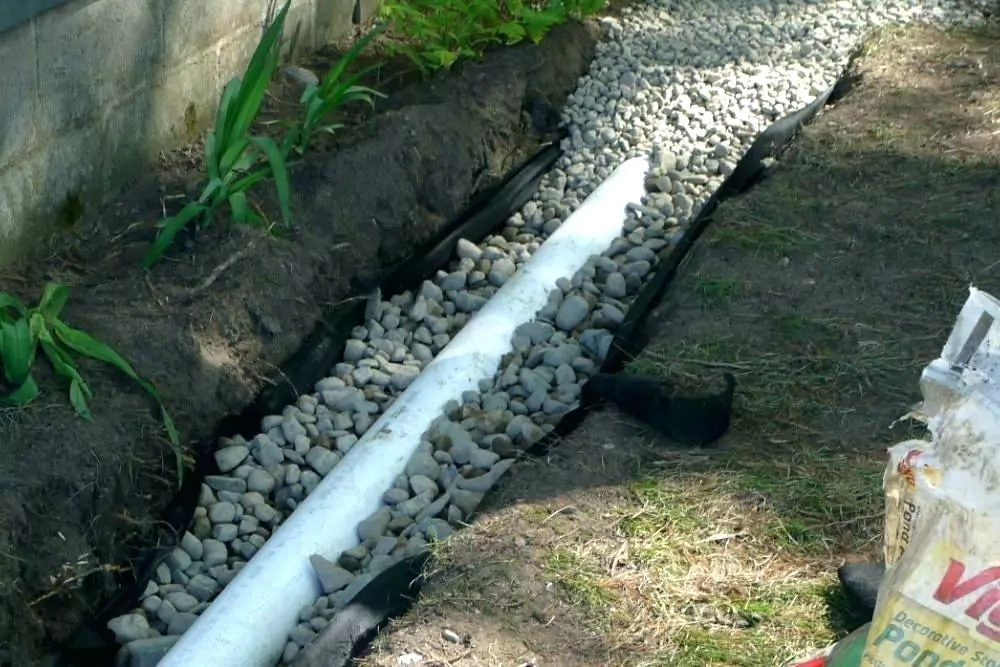

To construct one, you’d dig a trench (maybe 12″ x 12″) just above the saturated area on the uphill side. The base of the trench should slope to a lower-lying area away from the area you are trying to dry out. Then, add about 2 inches of washed round stone or gravel (each stone should be 1 to 1½ in diameter).
On top of the stone, install a perforated PVC drainage pipe. I prefer the 6″ diameter PVC pipe and don’t recommend the black plastic corrugated pipe that landscapers often use (it tends to crush easily). After the pipe is installed, make sure the end of it drains to “daylight” if possible to discharge the water away. Finally, add more stone to cover the top of the pipe, then cover that with filter cloth and top it off with two or three inches of soil.

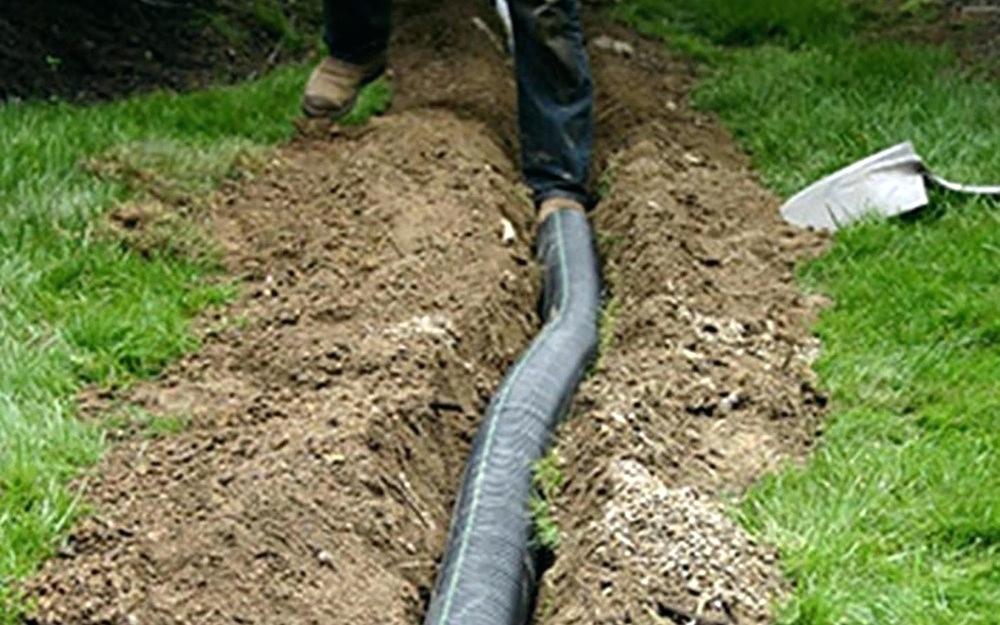

If this sounds like a lot of work – it is! However, there’s also another type of landscape drain pipe that’s easier to use and hence the name “EZ Drain“. Essentially, it’s a perforated pipe that is surrounded by a covering of filter cloth and instead of stone, plastic pellets. You’d still have to dig the trench, but it would not need to be as wide. Plus, it’s a lot easier than building a curtain drain the old fashioned way as I described above.
When you are done, you’ll have an invisible curtain drain that intercepts water, and runs it away and leaves you with a dry yard to enjoy!
